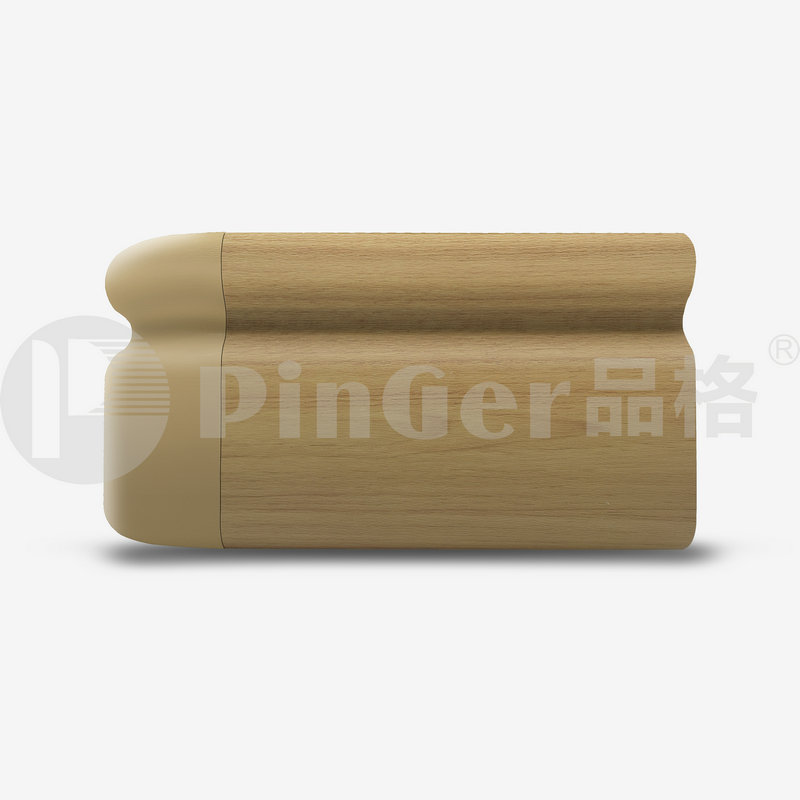

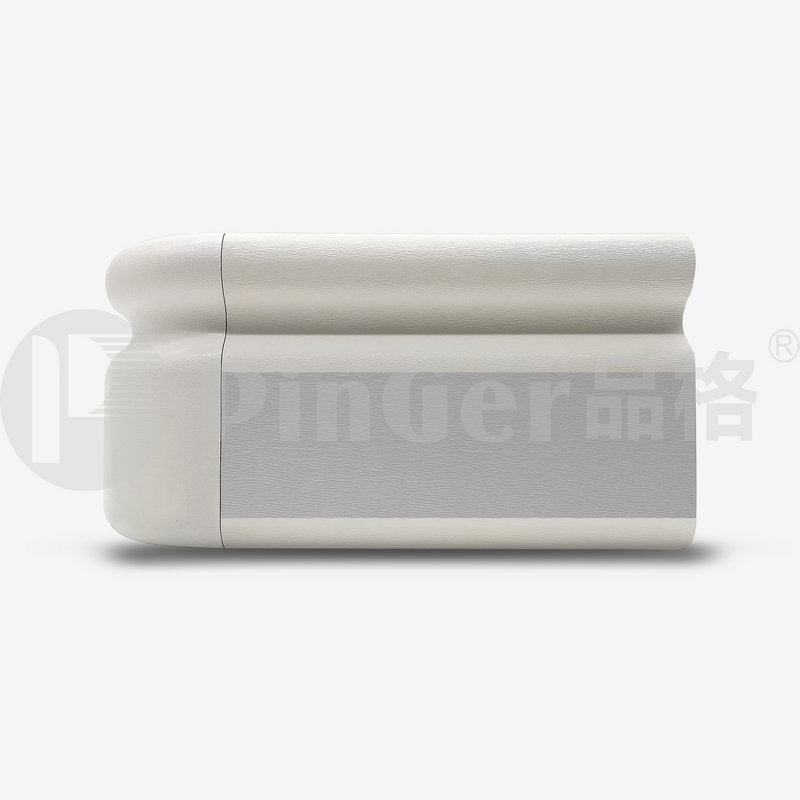

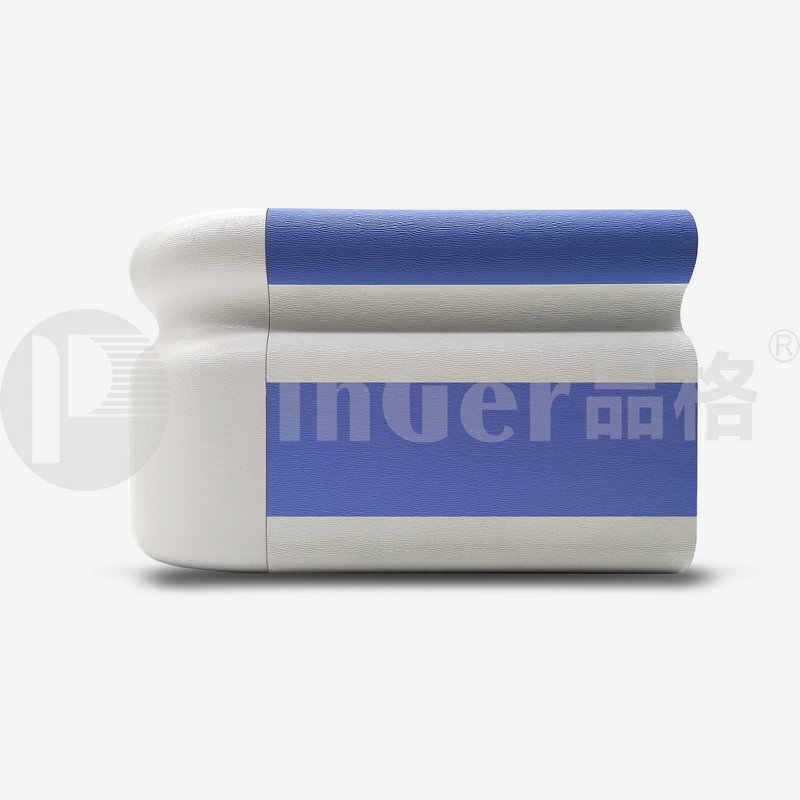

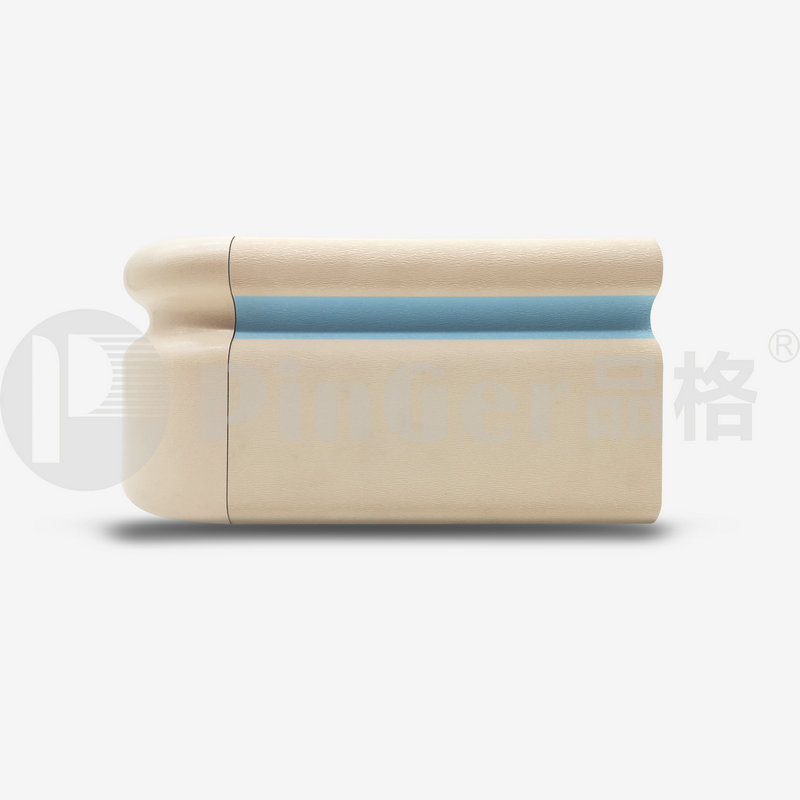

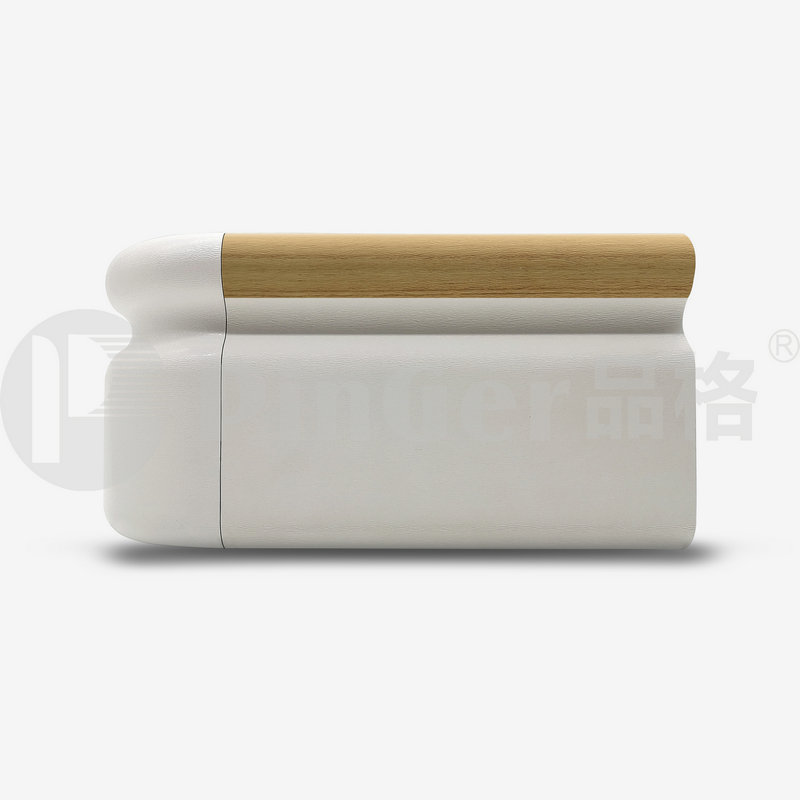

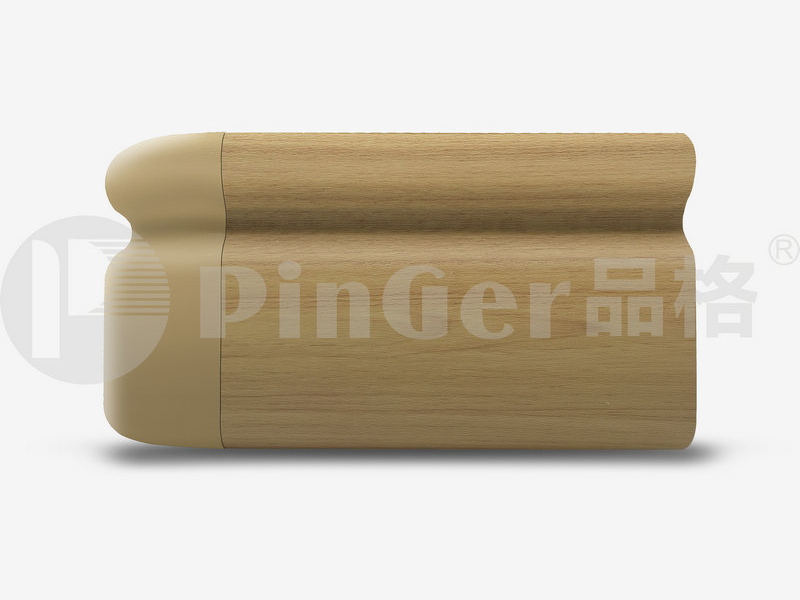

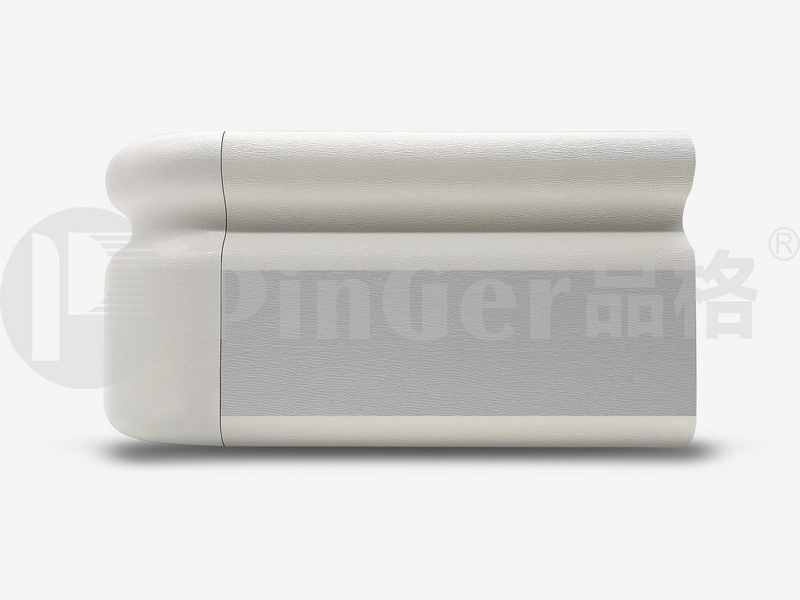

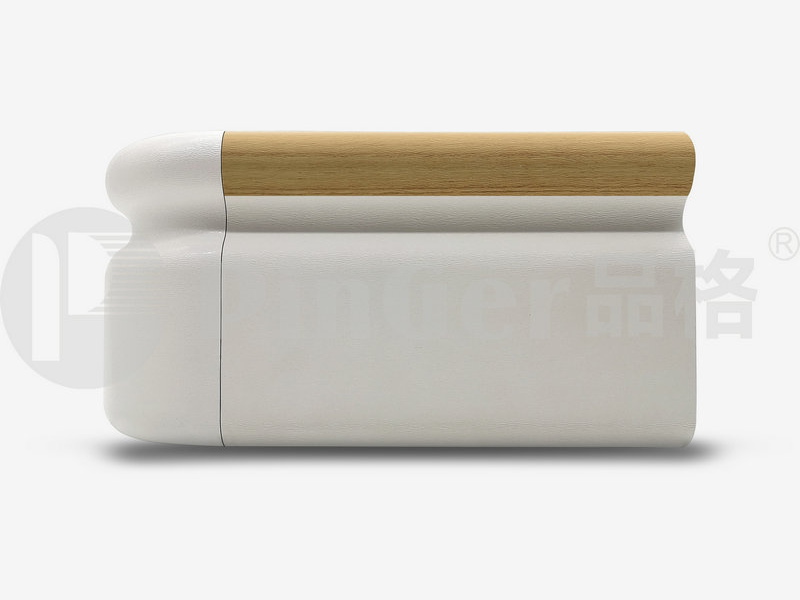

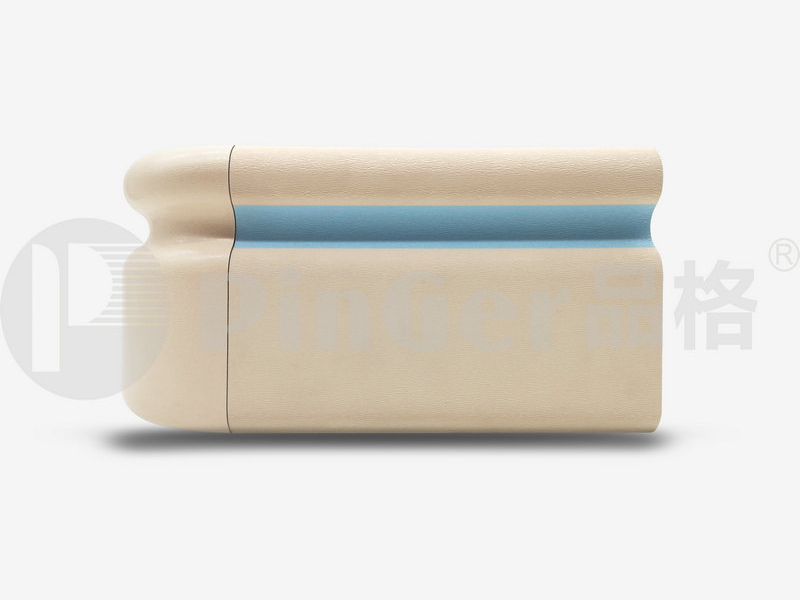

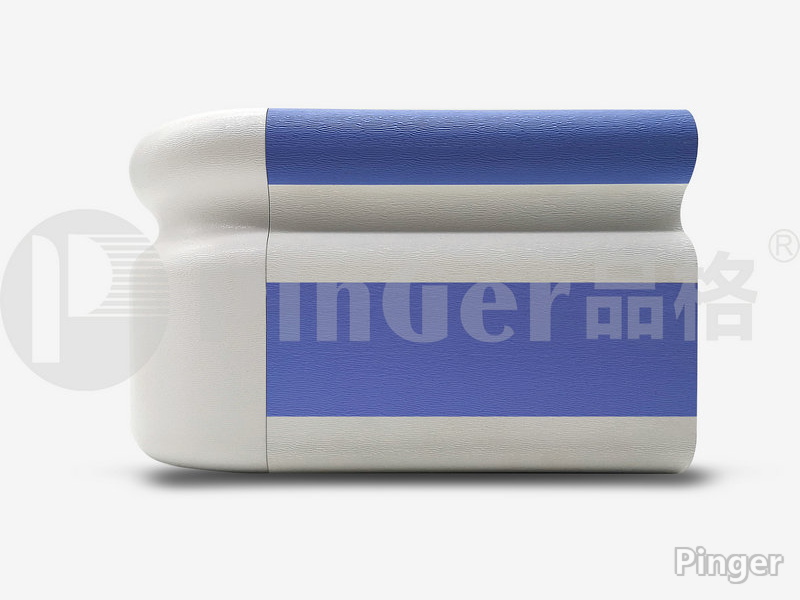

159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail
159mm medical crash handrail

new anti pollution vinyl crash handrail

model No.:HR1596
Materials:vinyl & aluminum in wood color
standard Length:5m
standard Width: 159mm
diameter of grip:38mm
distance with wall:38mm
  • رقم الصنف.:

    HR1596
  • تفاصيل المنتج

product Name: new anti pollution vinyl crash handrail


specification

●Exceptional impact protection and durability,and a high degree of design llexibility distinguish the entire line of pinger handrail.

New Anti Pollution Vinyl Crash Handrail

technology data
brand pinger
product nohandrails HR1596
material vinyl cover
size 2mm thickness vinyl cover,1.8mm thickness aluminum,ABS materials for elbows and brackets.
accessories bolts screws
scope of application Hospital,nursing home,restaurant, hotel,school,kindergarten and other public places.
colorthere are dozens of colors to choose.

structural drawings

●2mm fireproof vinyl cover+1.8mm 6063T aluminium+ABS elbow+ABS bracket

●More than 100 colors or OEM color

New Anti Pollution Vinyl Crash Handrail

New Anti Pollution Vinyl Crash Handrail

product characteristics

1、New vinyl materials

2.0mm vinyl surface cover plate has fine particles and compact density. it has ant-collision,fireproof,anti-scratch andabrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

New Anti Pollution Vinyl Crash Handrail

2、Hight-impact And durable

The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.

New Anti Pollution Vinyl Crash Handrail

3、Comfortable And convenient

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

New Anti Pollution Vinyl Crash Handrail

win THE trust AND favor OF famous global architectural projects

●Welcomed by many medical institutions at home and abroad even used by apple direct experience store Samsung semiconductor precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

New Anti Pollution Vinyl Crash Handrail


New Anti Pollution Vinyl Crash Handrail

feature specification

● Anti-bacterial and strongly anti-mildew

● fire retardant

● chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● no benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● rich color

● stable size

● easy to install,no noise during installation


technical data sheet

●Resistant to certain bacterial & fungal growth & mould proof (ASTM g 21-15)

●Class a fire and smoke rating. (per ASTM E84-17)

●Class b fire and smoke rating (per GB8624-2012)

●Horizontal burning (per UL94HB)

●Chemical And corrosion resistant (per ASTM d 543-14/ASTM D2240-15/ASTMD638-14)

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993)

●TVOC (per ca CDPH 01350-voc )

●Color difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate test (per SGS)

●Formaldehyde (per ca CDPH 01350-voc And GB/T 18580-2017)

●Heavy metal test (per CA65)

New Anti Pollution Vinyl Crash Handrail

installation instruction

●Bolts&Screws

●Cut aluminum retainer to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

New Anti Pollution Vinyl Crash Handrail

New Anti Pollution Vinyl Crash Handrail

technical data

certificate

certificate standard

result

antibacterial

ASTME2180

>99.9% inhibis growth

mould proof

ASTM G21-15

0 class non growth

fire and smoke rating

ASTM E84-17 class a

class a

horizontal burning

UL94HB

pass

Crashproo

ASTM D256-10el

pass

chemical and corrosion resistance

ASTM D543-14/ASTM D2240-15/ASTM D638-14

G00D

TVOC

ca CDPH 01350-voc

G00D

color Diference

SAEJ1545-2005

G00D

color staining

EN423:2001

G00D

Phthalate test

sgs

pass

Fomaldehyde

ca CDPH 01350-voc GB/T 18580-2017

pass

heavy metal Test[Lead& cadmium

CA65

pass

application
hospital hotel airport,High-end ofice building High-end Vila,kKindergarten,School,Sport Hal,Factory,.Plane,High-speed Train,Loose pulley.public place and so on.

New Anti Pollution Vinyl Crash Handrail

New Anti Pollution Vinyl Crash Handrail

care instructions

cleaning And maintenance requirements

visitor folw rate

cleaning and maintenance

stain processing

Privte room

one time in one year

require time

public place or corrider

two or three times in one year

require time

main channel or main entry door

one time lin one month

require time

Remark:

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe water mark.

cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

special remind:

●Use dishcloth to add warm water or cleaner to wipe. need to use clean dry dishcloth to wipe water mark.

New Anti Pollution Vinyl Crash Handrail
